Spray Nozzles

APPLICATION: Die casting - die release - foundry - liquid parting - robot equipment.
LIQUID FLOW: Adjustable by two needle type shut-off.
AIR PRESSURE: Min. 4 - Max. 8 bar.
LIQUID PRESSURE: Min. 4 - Max. 8 bar (Z version: 0,5-1 bar)
PILOT AIR PRESSURE: Min . 4 - Max. 8 bar.
SPRAY PATTERN: Adjustable internal fan or solid cone with possible suitable changing.
SPRAY DIRECTIONING: Adjustable by any position by means of universal
mounting brackets which can fitted with an optional base.

  • Silenced version on request (external mixing)(MODEL “P”)
  • Zinc version on request (MODEL “Z”)

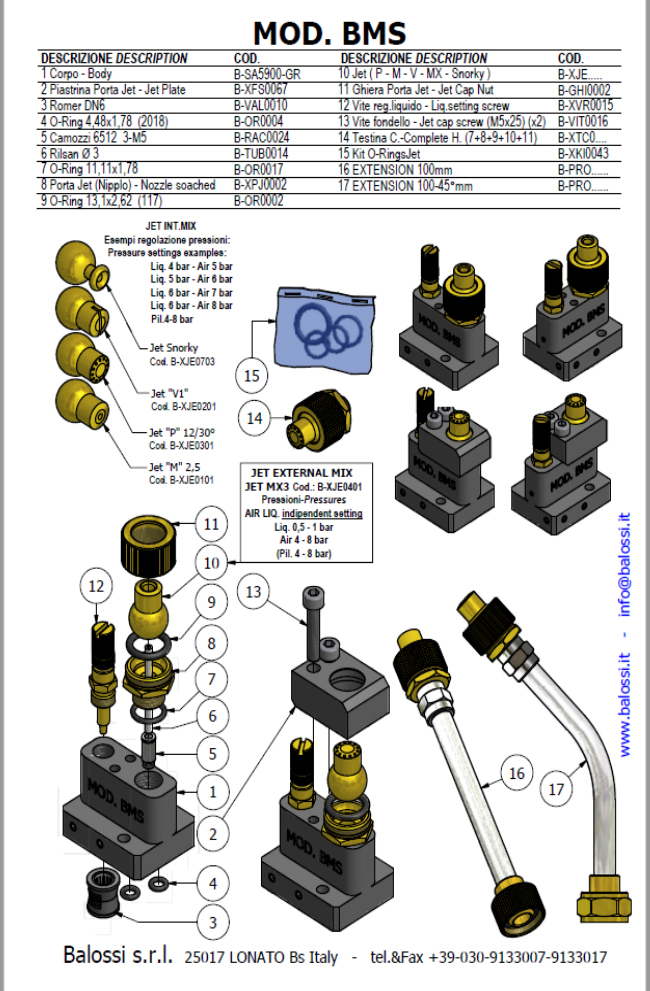

Image SPR.AUT. BMS Popular

SPR.AUT. BMS

- B-SA5900 SPR.AUT.BMS CORPO
- B-SA5901 SPR.AUT.BMS CORPO+VITE
- B-SA5902 SPR.AUT.BMS JET  "MX3"
- B-SA5903 SPR.AUT.BMS JET "M" Ø2,5
